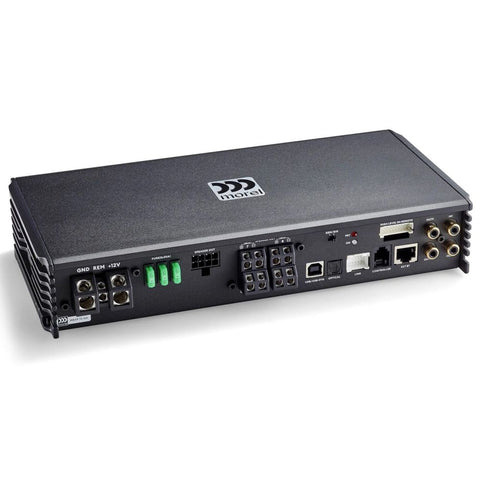

MOREL MDSP10/8A 8ch Premium Amplifier | 10ch DSP

Engineered with best-in-class power output, it offers 4x 80W + 4x 160W RMS, delivering clean and powerful output to drive any system with confidence.

Welcome to the next chapter in morel's high-fidelity legacy.

MDSP Amplifiers: Precision, Power, and Performance in One Compact Design

• Developed to meet the demands of modern vehicle integration, the MDSP amplifier series delivers unmatched performance, flexibility, and sound quality in a remarkably compact design.
• Whether you're upgrading an OEM system or building a high-end custom setup, MDSP amplifiers provide the tools and power to get the job done right.

Authentic Sound with Advanced MDSP Control

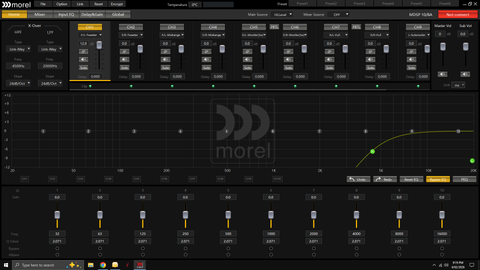

• Featuring high-resolution DSP with parametric EQ, fully adjustable crossovers, and input/output EQ per channel, the MDSP line ensures seamless, system-wide fine-tuning.
• Installation is streamlined with high-voltage speaker-level inputs, signal summing, and Morel’s Speaker Load Assurance Module (SLAM), which keeps factory amplifiers stable when integrating with OEM systems.

Installer Focused Features  and Listener Focused Sound

• Additional features like start/stop compatibility, automatic source switching, and TuneLink for multi-amp tuning from a single device make setup efficient and flexible.
• Bluetooth streaming and DRC compatibility provide users with complete control at their fingertips.
• Compact yet powerful, MDSP amplifiers embody Morel’s renowned sound quality and reliability — built for installers, trusted by professionals, and loved by music enthusiasts.

Specifications:

• Power at 4 Ohms: 4x 80W + 4x 160W RMS
• Power at 2 Ohms: 4x 160W RMS (Channels 5-8)
• Power Bridged 4 Ohms: 2x 320W RMS (Channels 5-8)
• Inputs:
  • High Level (Speaker): 8-Channel
  • Low Level (RCA): 2-Channel
  • Optical: 1x
  • USB OTG: 1x
  • Bluetooth: Optional
  • DRC Connect (Optional Controller): Yes
• Outputs:
  • Topology: Class D
  • Amplified (Speaker): 8-Channel
  • Low Level (RCA): 2-Channel
• Sample Rate: 24 Bit / 96kHz
• THD+N: <0.03%
• Frequency Response (+/-1dB): 20Hz~20kHz
• S/N Ratio (Rated Power, A-weighted): >98dB
• Dimensions: 275 (L) x 136 (W) x 51.6mm (H)
