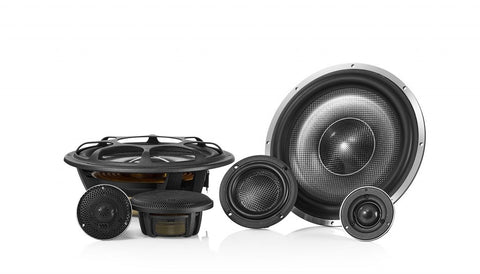

Morel Elate Carbon Pro 93A 9" 3-Way Component Speakers
Morel Elate Carbon Pro 93A 9" 3-Way Component Speakers
The evolution of the iconic Elate line continues to push the boundaries of performance. From the outset the Elate Carbon Pro was developed to be more than just a new set of speakers—it was designed to bring our customers closer on their quest of an immersive musical experience that will leave you breathless.
Elate Carbon carries on the tradition of high power, high fidelity speaker systems, yet takes a leap forward in sound performance. The new Pro series is highlighted by the Elate Alto cavity-back tweeter – a high-resolution design borrowing its architecture from the Supremo Piccolo. Combined with the new carbon fibre and Rohacell cone midrange and woofers, performance is breath taking in detail, even at extreme volume levels.
For those that want a “Passive” set-up the MTX 380C is available to purchase separately, designed expressly for the new Carbon Pro and Carbon series it features Bi-wiring / Bi-amp capabilities with a 0/-2 dB on the midrange and a +/- 2 dB on the tweeter.
No other speaker system fully envelops high-resolution and high power handling like the new Elate Carbon Pro.
SPECIFICATIONS:
| Configuration | 3-Way Split system |
| Driver Size | 222 mm (W) 100 mm (M), 69 mm (T) |
| Voice Coil Size | 75 mm (W) 54 mm (M) 28 mm (T) |
| Frequency Resp. | 25 Hz - 25,000 Hz |
| Crossover | Active system - MTX 380C Sold Separately |
| MTX 380C - 3-way, Bi Wire / Amp, Tweeter & Mid adj. | |
| Power Handling | 200 W/RMS 1000 W/Peak |
| Sensitivity | 89 dB |
| Impedance | 4 ohm |
| Speaker Grills | Lotus Grills Included |
