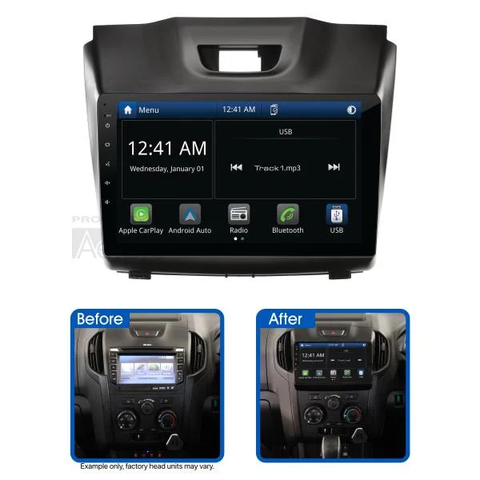

AMGM9B 9" Multimedia receiver to suit Holden Colorado - 2014-2016
The Aerpro AMGM9B 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Holden Colorado (inc.7) (2014-2016) vehicles.
Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.
Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts.
Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMGM9B includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, parking tones, access to the vehicle menu and the factory reverse camera (if equipped).
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This kit includes an Infodaptor Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (if equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
- USB Port can be retained (if equipped), optional USB Retention Adaptor Required APUNIUSB (sold separately). Connects to the rear USB input on the Multimedia Receiver.
- This head unit is sold as a kit which includes:
- AM9X Multimedia Receiver
- Black Facia Kit
- Infodaptor Interface Harness
- SWC Patch Lead
- Antenna Adaptor
Video:
Head Unit Feature Video
- To suit Holden Colorado (inc.7) (2014-2016)
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Large 9" capacitive touchscreen display
- Steering wheel control retention (including phone button), access to the vehicle settings, parking tones and factory reverse camera control retention (if equipped)
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual rear USB inputs (1.5A max charging)
- Dual camera inputs (AHD 720P compatible) & rear A/V input
- 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
AMGM9B HEAD UNIT UPGRADE KIT SPECIFICATIONS:
- Kit Inclusions:
- AM9X Multimedia Receiver
- Black Facia Kit
- Infodaptor Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button)
- Factory Reverse Camera: Yes (if equipped)
- AUX Input: N/A
- USB Input: Optional (APUNIUSB required, sold separately)
- Parking Tones: Yes (if equipped)
- Factory Amplifier: N/A
- Vehicle Menu: Yes
- Other: Climate Control and Parking Visualisation on the aftermarket display (if equipped)
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
- LCD Display:
- Size: 9"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 50W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports
- USB 1 (Rear) Playback Formats: CP,AA & Media
- USB 2 (Rear) Playback Formats: Media
- USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO/3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (with 12V power supply to the camera): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
IMPORTANT INFORMATION:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This kit includes an Infodaptor Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (if equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
- USB Port can be retained (if equipped), optional USB Retention Adaptor Required APUNIUSB (sold separately). Connects to the rear USB input on the Multimedia Receiver.
