ESB AUDIO 5.6K3X 5000 SERIES 3-WAY COMPONENT SPEAKERS

  • $1,899.00

or make 4 interest-free payments of $474.75 AUD fortnightly with Afterpay More info




ESB AUDIO 5.6K3X 5000 SERIES 3-WAY COMPONENT SPEAKERS

Elegance and Technology, all Italian

The philosophy of this project is to create a loudspeaker system with an extremely high transient response (dynamic),  in order to obtain a music reproduction with a more realistic impact and involvement.

To achieve this, the main goal was to reduce the moving masses in order to make the mobile part of the loudspeaker light and fast in its movements, favouring the sudden variations of movement transmitted by the piece of music through the amplifier.

Tweeter and Midrange

• The carbon fiber reinforced, polymer matrix composite dome ensures extraordinary rigidity combined with a very low weight.

• The 28 mm (tweeter) and 50 mm (midrange) aluminum voice coil allow the use of very high power for this kind of component.

• The components use a very large, vented neodymium motor magnet optimized with computer simulations (FEA) to obtain a greater efficiency and improve linearity all along the voice coil’s excursion. The magnet is a high-grade type to reduce magnetic loss at elevated temperatures and concentrate more energy in a small space.

• All motor parts are made by the CNC process. This provides tighter tolerances and improved performance.

• Great attention was paid to the axial and radial ventilation of the moving coil to ensure high power handling, with reduced distortion, and increased durability. The axial ventilation holes reduce the compression of the air at the back of the dome resulting in much reduced distortion and extended response into lower frequencies.

• A special acoustic resistance helps to control the Ots.

• Residual resonances are neutralized by the under-dome, dB Cloth® damping material. This extends the frequency response to the lower limits and reduces harmonic distortion.


Mid-Woofer

• Great attention was paid to the axial and radial ventilation of the moving coil to ensure high power handling, reduced distortion, and increased durability. The stepped back allows a very long cone excursion.

• Metal parts machined from solid and refined material are CNC machined for maximum magnetic flux linearity, and minimum magnetic loss. This reduces distortion at high power levels.

• A pure copper ring was inserted into the magnetic field reduces harmonic distortion.

• 25 mm CCAW (Copper Clad Aluminum Wire) double layer voice coil wound on an aluminum former provides exceptional power handling and compression-free reproduction to handle the most demanding musical passages.

• The carbon fiber reinforced, polymer matrix composite exponential cone ensures an extraordinary rigidity combined with very low weight.

• The eight twin-spoke, anti-resonant and self-extinguishing carbon fiber reinforced ABS frame ensures a drastic reduction of the cone's back reflections. The frame design assures high structural and torsional rigidity. This provides for perfect parts alignment and very tight construction tolerances.

• The exclusive ESB design of the TSW (Twin Symmetrical Wave) double-wave rubber suspension allows an excursion with perfect progression and linearity. This feature ensures natural low-frequency reproduction at low as well as at high volumes.

• Large Conex® spider allows a smooth and gentle run at low excursions and gently holds the cone at high excursions, thus increasing the useful frequency range.

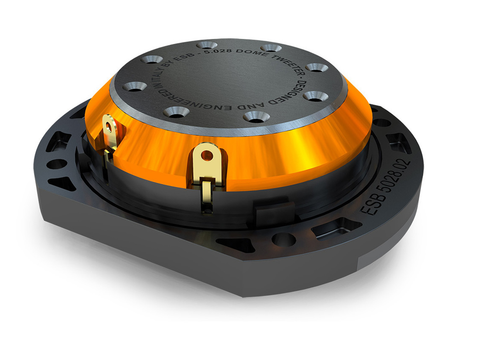

Tweeter

  • 1.1″/28 mm Dome Tweeter, 28 mm aluminium voice coil
  • 32.8 mm nominal diameter, High-grade neodymium magnet
  • Carbon fibre dome, Ferrofluid cooling and damping
  • Acoustic resistance Qts. control, Computer optimized design
  • Motor metal parts CNC machined, Under-dome dB Cloth® damping material
  • Nominal Impedance: 4 Ohm
  • Nominal Power Handling: 110 Watt
  • Transient Power: 220 Watt
  • Frequency Response: 900 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m

Mid-Range

  • 2″/50 mm Dome Midrange, 50 mm aluminium voice coil
  • High-grade neodymium magnet, Carbon fibre dome
  • Ferrofluid cooling and damping, Acoustic resistance Qts control
  • Computer optimized design, Motor metal parts CNC machined
  • Under-dome dB Cloth® damping material, Nominal Impedance: 4 Ohm
  • Nominal Power Handling: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 500 Hz ~ 6 KHz
  • Sensitivity: 91 dB 1W/1m

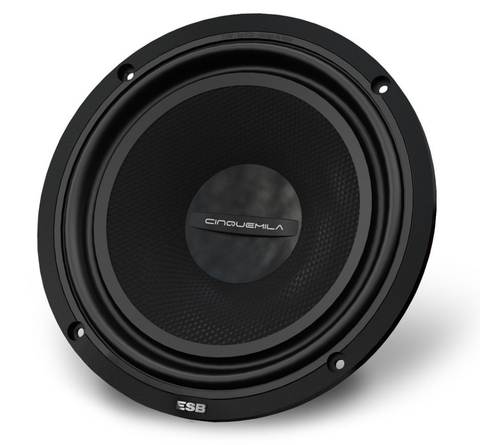

Mid-Woofer

  • 6.5″/165 mm Mid-Woofer, Carbon fibre cone
  • TWS® rubber surround, Copper and aluminium voice coil
  • 25 mm voice coil diameter, Y35 oversized magnet
  • Aluminium former, ABS housing
  • Conex® progressive spider, Motor metal part CNC machined
  • Computer optimized design, Nominal Impedance: 4 Ohm
  • Nominal Power: 160 Watt
  • Transient Power: 320 Watt
  • Frequency Response: 50 Hz ~ 3.5 KHz
  • Sensitivity: 92 dB 1W/1m

Cross-Over

  • Crossover Frequency: 900/3600 Hz
  • Slope: 12 dB/Oct LP/HP, 6 dB/Oct BP Butterworth
  • High Frequency Level: 0/-3 dB
  • Mid Frequency Level: 0/-2 dB
  • Power Handling: 300 Watt
