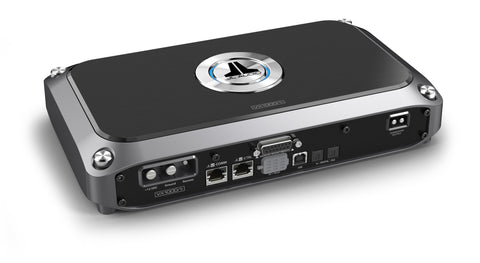

JL AUDIO VX1000/1i Class D 1 x 1000 Watts RMS

JL AUDIO VX1000/1i Class D 1 x 1000 Watts RMS

  • $1,499.00

or make 4 interest-free payments of $374.75 AUD fortnightly with Afterpay More info




Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω – 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

The VX1000/1i monoblock subwoofer amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable



Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 600 W RMS x 1
@ 3 Ω 800 W RMS x 1
@ 2 Ω 1000 W RMS x 1
@ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 500 W RMS x 1
@ 3 Ω 650 W RMS x 1
@ 2 Ω 800 W RMS x 1
@ 1.5 Ω N/A


General Specifications:

Frequency Response 12 Hz – 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs) 87 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs) 60 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs) 87 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs) 56 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >400 / 50 Hz
Damping Factor @ 2 Ω >300 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV – 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
Physical Specifications
Table_Image
Height (H) 2.12 in / 54 mm
Width (W) 11.32 in / 287 mm
Depth (D) 6.62 in / 168 mm
Net Weight 6.55 lb / 2.95 kg
