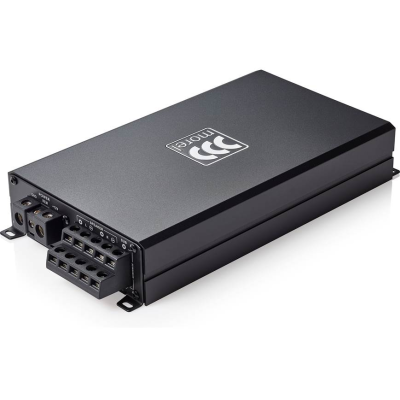

MOREL MPD5.550 5-CHANNEL CLASS-D COMPACT AMPLIFIER

The Morel MPD series amplifiers are designed to deliver high-end audio performance in a compact package, making them the ideal choice for audiophiles and car audio enthusiasts.

Upgrade your in-car audio, immersing yourself in rich, powerful, and precision-crafted music while enhancing your driving experience— all with the convenience of a chassis size that can fit almost anywhere.

Features:

• With 75W x 4 plus 250W x 1 at 4 ohms, or up to 110W x 4 and 400W x 1 at 2 ohms, it provides the flexibility to drive a complete front, rear, and sub system with authority.
• Featuring low distortion, precise crossover control, and advanced protection circuitry, the MPD 5.550 is ideal for premium car audio systems that demand performance, efficiency, and space-saving design.
• Impressive Clarity: Wide frequency response of 20Hz to 30kHz and Signal-to-Noise ratio over 95dB ensure superior audio quality.
• Compact and Powerful: Space-saving designs with robust power outputs suitable for any vehicle. These amplifiers can be discreetly tucked away, yet they deliver remarkable power without consuming valuable space.
• Customizable Sound: Variable crossovers for personalized audio tuning, enhancing your in-car audio experience.
• Built-in Protection: Advanced circuits to safeguard against overcurrent, short circuits, thermal issues, and internal errors, ensuring long-term reliability.
• MPS-HL high-low level adaptor - All MPD Amplifiers seamlessly pair with the MPS-HL high-low level adaptor (available separately), equipped with a 50-ohm load resistor to keep load-sensing factory amplifiers active, simplifying your installation process.

Specifications:

• Power at 4 Ohms: 4x 75W + 1x 250W RMS
• Power at 2 Ohms: 4x 110W + 1x 400W RMS
• Power Bridged 4 Ohms: 2x 220W + 1x 250W RMS
• Minimum Impedance: 2 Ohms
• THD+N: <0.3%
• Frequency Response (+/-1dB): Main: 20Hz~30kHz ; Sub: 10-220Hz
• S/N Ratio (Rated Power, A-weighted): >95dB
• Channel Separation: >50dB
• Input Voltage Range: 0.2-5V (PRE INPUT) 0.4-10V (SPK INPUT

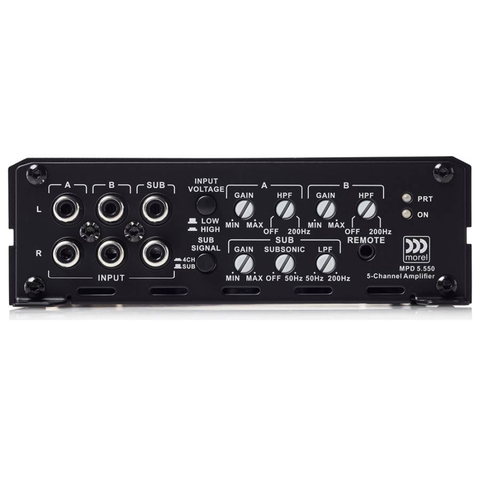

• Preamp Filters: HPF OFF-200Hz for Group A & B LPF 50-200Hz, Subsonic OFF -50Hz for SUB
• Preamp Crossover Slope: 12dB/Octave
• Remote Level Control: Optional MPS-R1 (sold seperately)
• Fuse Recommendation: 80A (Inline fuse must be used within 400mm of battery)
• Dimensions: 48 x 148 x 294.5mm
