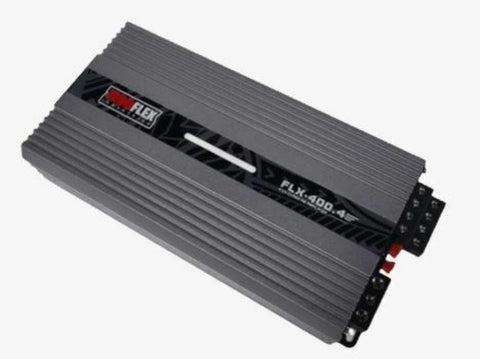

ZEROFLEX FLX-400.4 4CH CLASS AB AMPLIFIER

The Zeroflex FLX-400.4 4ch Amplifier is a powerful Class AB Amplifier, designed to produce clean, solid power.

Ideal for use in a multi channel speaker system requiring clean, solid power for 4ch speakers, or even as a 3ch Amplifier running front speakers and a Subwoofer, making it the perfect amp to use in Single Cab Ute systems.

Specifications:

Power Output

• 100W x 4 at 4ohm @ 13.4V @ 0.1% THD
• 150W x 4 at 2ohm@ 13.4V @ 0.1% THD
• 300W x 2 at 4ohm (Bridged) @ 13.4V @ 0.1% THD

Features

• Short Protection

• SMD Components
• Subsonic Filter
• Low pass Filter
• Sub control
• Bass Boost

Audio Performance & Tuning

• Frequency Response 20Hz - 20KHz
• Input SPL - 0.2V - 6v
• Signal-to-Noise Ratio: 90dB

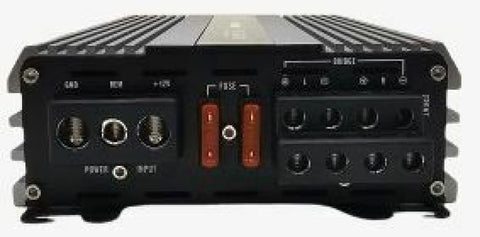

Connection Terminals & Power

• Input Terminal 4 Ga
• Output Terminal 10 Ga
• Remote bass controller
• Fuse Rating 80A
• Working Voltage 10 - 16 V

Build & Physical Dimensions:

• Amplifier Topology: CLASS AB
• Dimensions - 304mm x 144mm x 54mm
