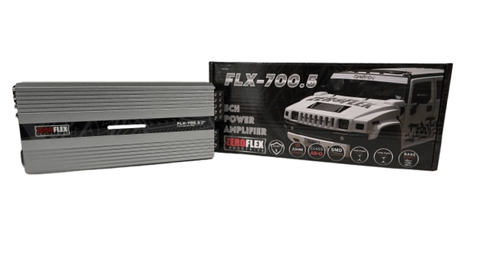

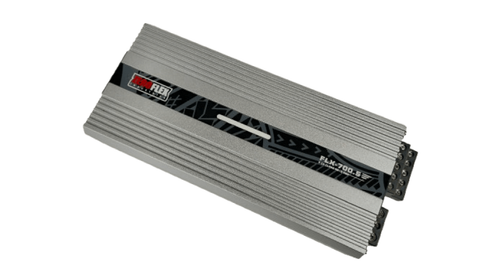

ZEROFLEX FLX700.5 5-CHANNEL (HYBRID CLASS AB + CLASS D)

The ZEROFLEX FLX700.5 is a 5-channel car audio amplifier designed to run a complete speaker and subwoofer system from a single unit. It combines a Class AB setup for four main speakers with an efficient Class D mono channel dedicated to a subwoofer.

Specifications:

Power Output

• 4 Ohm: 75W x 4 channels + 350W x 1 channel
• 2 Ohm: 100W x 4 channels + 500W x 1 channel
• Bridged (4 Ohm): 200W x 2 channels bridged

Audio Performance & Tuning

• Frequency Response: * Channels 1 - 4: 20Hz – 20kHz
  • Channel 5 (Subwoofer): 10Hz – 250Hz
• Signal-to-Noise Ratio: 90dB
• Input Sensitivity (SPL): 0.2V – 6V
• Crossover & Boost: Features a Low Pass Filter and Bass Boost

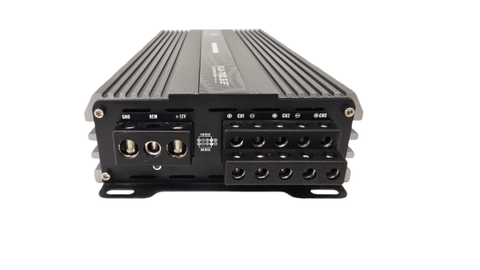

Connection Terminals & Power

• Input Terminal: 4 Gauge
• Output Terminal: 10 Gauge
• Fuse Rating: 80A
• Working Voltage: 10V – 16V

Build & Physical Dimensions:

• Amplifier Topology: Hybrid Class AB (Channels 1-4) + Class D (Channel 5)
• Size: 344mm x 144mm x 54mm
